Feature data analysis of dance movements by motion capture

1. Introduction

With the rapid advancement of computer technology, computer vision has also been applied in more and more fields such as sports training. With the assistance of computer technology, it is possible to perform more deeper research of human posture [1]. Motion capture technology has a wide range of application value [2], which can provide kinematics, dynamics, and other parameters for medical rehabilitation [3]. In sports training, it can assist coaches to realize the monitoring of athletes and obtain some action parameters for accurate technical guidance [4]. At present, the application of motion capture has become an issue of wide concern to researchers [5]. Giannakeris et al. [6] used multi-modal sensor data to solve the task of human action identification and found that it achieved effective recognition in medical platform services. Yuanze et al. [7] proposed an approach to motion recognition for healthcare quality control, developed an improved anchor-to-joint network, and conducted experiments on open source ITOP and healthcare resource estimation datasets. The approach achieved satisfactory real-time performance and accuracy. Balasubramanian et al. [8] established a human motion recognition architecture based on a wearable sensor network and used a convolutional neural network with long short-term memory (LSTM) to identify patient activities. They found that the method achieved 99.53 % accuracy. Xu et al. [9] put forward an attention-based multistage co-occurrence graph convolution-LSTM method based on 3D bone sequences to realize motion recognition and found that it achieved better performance than mainstream methods through experiments on datasets. In dance research, motion capture technology can provide support for the digital protection of national dances and provide technical guidance for dancers in actual training, which is of great research significance [10]. However, at present, the research of motion capture technology in the field of dance is relatively rare. Therefore, based on the motion capture technology Kinect, this paper analyzed the feature data of dance movements and realized the classification of different dance movements. The combination of motion capture technology and dance movement analysis provides strong support for the informatization and digitalization of dance research.

2. The motion capture of dance movements

Many of the current motion capture technologies have relatively strict requirements for clothing and lighting, and the operation process is also complex. Kinect is an unmarked motion capture system [11] that can collect bone point motion data without wearing any sensor, which has advantages of low cost and easy implementation, so it has been more and more widely used in the field of motion analysis [12].

Kinect v2 used contained a variety of sensors such as high-definition cameras, which can realize real-time tracking of skeleton information. Table 1 displays its main parameters.

Kinect v2 can capture the three-dimensional coordinate information of 25 human bone articulation points. However, in the actual collection of dance movements, the collection effect of finger bone points is not good due to the influence of clothing and movements. Moreover, considering that finger movements have little influence on the overall change of dance movements, the finger bone data was excluded in the actual collection. Only 20 articulation points were retained, as shown in Table 2.

Data were collected from 50 healthy dancers, all of whom had no strenuous exercise 24 h before the experiment and were in good health. In the laboratory, the Kinect camera was 1-1.2 m away from the ground and 2-3 m away from the subjects. The subjects stood directly in front of the Kinect, and the collection site had a wide field of vision without occlusion, so as to ensure that Kinect could completely collect all bone points.

3. Feature data analysis based on spatio-temporal graph convolution

The spatio-temporal graph convolution network (ST-GCN) has good performance in data prediction [13], image classification [14], and other aspects. It can automatically learn the spatio-temporal features of skeleton sequences and achieve end-to-end training. Compared with traditional GCN, ST-GCN has better performance. It takes the 3D coordinate sequence of human bone points as the input. After multi-layer spatio-temporal graph convolution operation, the feature processing is completed, and the classification of different actions is realized through the softmax layer.

First, spatio-temporal graph $G=\left(V,E\right)$ is established using skeleton sequence $G=\left(V,E\right)$, where $V$ is the point of the skeleton sequence and $E$ is the edge of the graph. In the time dimension, ST-GCN uses a temporal convolutional network (TCN) to complete the convolution operation, and its sampling range and function are:

where $d\left(v_{tj},v_{ti}\right)$ refers to the smallest path from $v_{tj}$ to $v_{ti}$, $D=1$, $t$ refers to the frame in the motion video, $i$ is the node in the skeleton sequence, $v_{ti}$ is the joint vector of the $i$-th node in the $t$-th frame, and $v_{tj}$ is the joint vector of the $j$-th node in the $t$-th frame.

The graph convolution formula in spatial dimension is:

Based on the above equations, the graph convolution formula for each node can be obtained:

However, ST-GCN is difficult to discover co-occurrence features in the processing of long-distance articulation points. In order to improve this point, this paper adds a co-occurrence feature learning branch on the basis of original ST-GCN to realize the learning of long-distance articulation co-occurrence features. The structure of the improved ST-GCN is displayed in Fig. 1.

In Fig. 1, a data with a shape of $N\times 3\times T\times V\times M$ ($N$: the size of batch; 3: number of channels; $T$: skeleton sequence length; $V$: number of nodes; $M$: number of characters in the sequence) is entered. After being normalized by the BatchNorm layer, it is input to the nine-layer ST-GCN for feature processing. The output channels of the first three layers, the middle three, and the last three layers were 64, 128, and 256, respectively, and then the output is sent to the pooling layer for global pooling to obtain a 256-dimensional feature vector. After passing through the softmax layer, the classification is completed. Moreover, after passing through the third ST-GCN layer, a data of $N\times 64\times T\times V\times M$ is output, and it enters the co-occurrence feature learning branch. After dimension swapping, a data with a shape of $N\times V\times T\times 64\times M$ is obtained. After three-layer convolution and pooling, the classification results are obtained. The two branches share the parameters of the first three layers and jointly optimize the cross-entropy loss function:

where $y_i$ is the real value and ${y\text{'}}_i$ is the predicted value.

The classification of the improved ST-GCN is determined jointly by two branches:

where $l$ is the classification result of different branches and $\lambda$ indicates the weight of different branches.

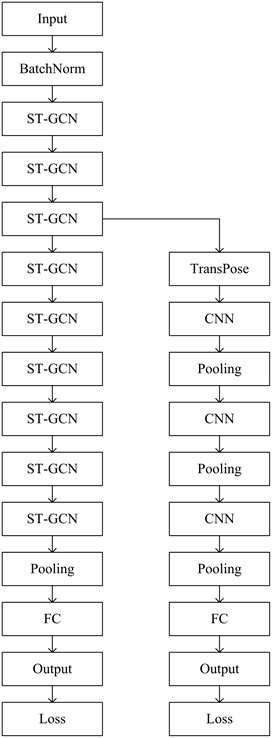

Fig. 1Improved ST-GCN

In addition to the improvement of ST-GCN, the skeleton features are further analyzed in this paper. In the improved ST-GCN, only the coordinate information of the articulation point is used, and using more skeleton features can further enhance the classification ability of different dance movements. The point that is closer to the center of gravity of the skeleton is defined as source articulation point $v_1=\left(x_1,y_1,z_1\right)$, and the point that is furthest away from the center of gravity of the skeleton is defined as articulation endpoint $v_2=\left(x_2,y_2,z_2\right)$. The bone length and direction features are added in the classification to improve the classification effect:

(1) Bone length feature: $m=\sqrt{{\left(x_2-x_1\right)}^2+{\left(y_2-y_1\right)}^2+{\left(z_2-z_1\right)}^2}$,

(2) Bone direction feature: $\left(\cos \alpha ,\cos \beta ,\cos \gamma \right)=\left(\frac{x_2-x_1}{m},\frac{y_2-y_1}{m},\frac{z_2-z_1}{m}\right)$.

As shown in Fig. 2, after collecting the three-dimensional coordinates of the 20 bone joints through Kinect v2, the bone length features and bone classification features were calculated and input into the improved ST-GCN for learning. Finally, the movement classification result was obtained using the software classifier.

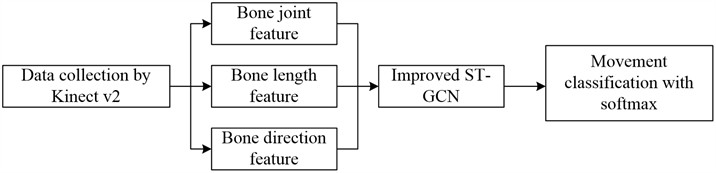

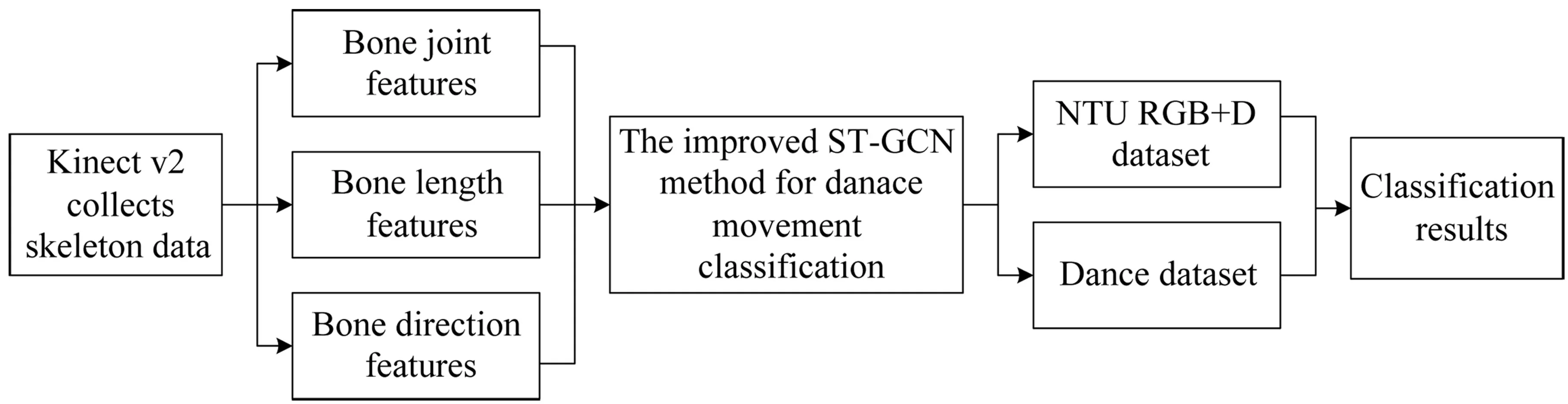

Fig. 2The improved ST-GCN-based movement classification method

4. Results and analysis

4.1. Experimental setup

The experiment was conducted on a Windows 10 operating system with i5-13600KF processor, and the algorithm was implemented based on Python 3.7 and PyTorch 1.8. In the training stage, a stochastic gradient descent (SGD) optimizer was used, the initial learning rate was 0.1, the epoch was 80, the batch size was 8, and $\lambda$ was 0.6. The experimental datasets are as follows.

(1) NTU RGB+D dataset [15]: it was collected with Kinect v2, including 60 movements performed by 40 actors, totally 56,880 samples. It was divided using two criteria: (1) cross-subject (CS): the dataset was divided according to the character’ identity, 40,320 clips of 20 actors were used as the training set, and 16,560 clips of another 20 actors were used as the verification set; (2) cross-view (CV): the dataset was divided according to cameras, 37,920 clips collected by two cameras were taken as the training set, and 18,960 clips collected by the other camera was taken as the verification set.

Fig. 3The first movement in the dance called returning to the nest

Fig. 4The second movement in the dance called returning to the nest

Fig. 5The third movement in the dance called returning to the nest

(2) Dance dataset: The method described in (1) was used to collect data from a dance called returning to the nest, which adopted Jingxing Lahua, a folk dance in Hebei Province, as the dance element. It told about the journey of magpie returning to the nest and presented the theme of animal protection. Three movements (Figs. 3-5) were selected for the classification study of dance movements. All subjects had a good command of these three movements and could perform them smoothly according to the music. Fifty subjects performed three dance movements in turn, and each movement performed 20 times. A total of 3,000 samples were obtained, 2,000 of which were taken as the training set and 1,000 as the verification set.

5. Conclusions

In this paper, the skeleton data of various dance movements were collected by Kinect motion capture technology, and an improved ST-GCN method was designed to realize the feature analysis of skeleton data. Through experiments on the NTU RGB+D and dance datasets, it was found that this method had a superior accuracy compared with the current movement classification methods, and its average accuracy for the dance dataset reached 96.03 %. The proposed approach can be further applied in practice to provide guidance for the digital preservation and scientific training of dance.
