Bimetal structures manufacturing with wire arc additive manufacturing (WAAM): review of microstructure, interface, and mechanical properties

1. Introduction

ASTM International defines additive manufacturing (AM) as “a process of joining materials to make objects from 3D model data, usually layer upon layer, as opposed to subtractive manufacturing methodologies.” Unlike traditional subtractive techniques, AM builds components incrementally based on digital 3D data [1-3]. AM is considered one of the key components of Industry 4.0. Unlike conventional manufacturing methods, it operates on a fundamentally different principle that involves layer-by-layer deposition of material [4-6]. This method enables the production of complex geometries and large-scale metallic structures with reduced material consumption, fewer post-processing steps, and lower overall production costs, which has led to growing interest in AM [7-10]. Over the past three decades, the scope of AM technology has undergone a significant transformation. Initially, AM was primarily used for prototyping applications aimed at design verification, shape, and fit evaluation; however, it is increasingly employed as a direct manufacturing method for end-use products [11, 12]. The geometric freedom and material flexibility offered by AM technologies provide new opportunities for product design [13-15]. The advantages of additive manufacturing include reductions in time, cost, material waste, and human intervention, thereby shortening the overall product development cycle [16-18]. Owing to its capability to fabricate complex and lightweight structures, AM has become a highly attractive manufacturing method in the aerospace industry [19-22].

Wire Arc Additive Manufacturing (WAAM) is an efficient additive manufacturing technique for producing medium- to large-scale, high-strength metal components [23]. It has been successfully applied in the aerospace industry for manufacturing structural parts such as wing spars and landing gear components, as well as in marine and offshore applications for producing ship propellers and critical offshore structure components [24,25]. Within aerospace applications, wall-type structures have been fabricated using the WAAM process, and the mechanical properties of these structures are comparable to those of conventionally cast or wrought products [26, 27]. In this method, based on data obtained from CAD models, welding wires are deposited layer by layer along a predetermined deposition path, enabling the production of various components with high dimensional accuracy [28, 29]. A schematic of the WAAM process is shown in Fig. 1. In this context, welding-based manufacturing technologies that utilize an electric arc as the heat source and a metal wire as the feedstock material have drawn considerable attention [30, 31]. The concept of fabricating entire components by depositing weld metal has been employed since the early 20th century [32]. In robotic WAAM structures, the macro- and microstructural characteristics of the fabricated parts vary significantly with the welding parameters. These parameters include variables such as the deposition rate, welding current, shielding gas type, wire feed speed, and heat input [33, 34]. These variables have a direct influence on the resulting mechanical and dimensional properties. Gas Metal Arc Welding (GMAW) is a welding process in which an electric arc is established between a consumable electrode and a workpiece [35, 36]. This method, which employs an electric arc as a heat source and continuously feeds filler wire into the molten pool to form the part, is essentially defined as a conventional wire-fed welding process [32, 37, 38]. Wire-fed methods eliminate many of the issues encountered in powder-based techniques [39, 40].

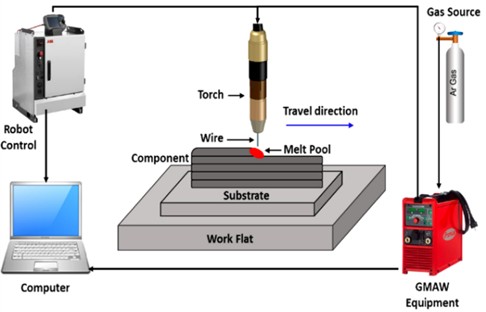

Fig. 1a) Schematic of the WAAM system, b) photograph of a sample part, and c) detailed schematics of the sample cross sections [41]

a)

b)

c)

This approach is implemented as the WAAM process. By utilizing robotic systems, WAAM allows the fabrication of complex geometries, thereby overcoming many of the limitations of traditional manufacturing methods [42]. One of the major advantages of the WAAM process is its relatively low capital investment, as WAAM equipment can be assembled from commercially available, open-source components supplied by the welding industry [43, 44]. Due to its high deposition rate, relatively low production cost, and wide accessibility, WAAM has emerged as a prominent technology among metal additive manufacturing techniques [33]. It has become a promising approach for the fabrication of components made from various materials such as titanium, nickel-based superalloys, steel, and aluminium [8, 45]. Compared with other metal additive manufacturing processes, WAAM offers higher deposition rates, lower raw material costs, and improved dimensional accuracy [46-49]. However, due to the high heat input, issues related to residual stresses and surface quality can occur [41, 50]. The advantages and disadvantages of the WAAM process are listed in Table 1. According to the ASTM F2792-12a standard, WAAM is classified under the “Directed Energy Deposition” (DED) category [1]. Processes in this category are particularly advantageous for the cost-effective production of large, medium-complexity metal components. In addition, they provide significant raw material savings compared with conventional methods such as CNC machining and forging [51]. DED processes do not require specific molds, as in casting or forging, and therefore significantly reduce production costs and cycle times, particularly for low production volumes [52]. The use of wires in DED enables highly efficient material deposition [53].

Over time, several terms have been used to describe WAAM, including Rapid Prototyping (RP), Shape Welding (SW), Shape Melting (SM), Solid Freeform Fabrication (SFF), Shape Metal Deposition (SMD), and 3D Welding [55-57]. The most commonly used processes in WAAM are TIG, MIG, and plasma arc-based approaches [58]. MIG-based WAAM exhibits significantly higher deposition rates than TIG and plasma-based methods [27, 30, 59]. As the wire is completely melted and fed into the molten pool, issues related to material accumulation are minimized [39]. However, in MIG-based WAAM, defects may occasionally occur due to the overflow or instability of the molten metal pool during the layer-by-layer deposition process. This issue can be mitigated by optimizing parameters such as the travel speed, wire feed rate, and torch-workpiece angle [10]. In conventional arc-based AM methods, spatter formation caused by high temperatures is frequently observed, which negatively affects the formability and overall shape accuracy of the produced part [60,61]. To eliminate this issue, to reduce the heat input, and stabilize the process, a variant of the GMAW method known as Cold Metal Transfer (CMT) was developed [8]. In arc-based manufacturing processes, the CMT technique effectively prevents problems such as excessive deformation and reduced forming precision [62, 63]. This system detects the moment when the wire contacts the molten pool and retracts it via a servo motor, thereby enabling a controlled and repeatable droplet transfer [64, 65]. The mechanism of the CMT technique is illustrated in Fig. 2.

In industrial applications requiring specialized functional performance, the additive manufacturing of bimetallic components has gained increasing importance due to the growing demand for materials that can simultaneously provide conflicting properties such as high strength, low weight, corrosion resistance, and thermal stability [33, 54]. The demand for joining dissimilar metals has increased in industries such as power generation, petrochemicals, and the aerospace sector, to reduce material costs and enhance design flexibility [67]. By combining two different materials, bimetallic systems enable the production of composites with high mechanical strength, superior corrosion resistance, and good electrical conductivity [63, 68]. These properties are particularly critical in the automotive, energy, and aerospace sectors [69-71]. Welded joints of different metals in the production of power plant components are emerging, particularly to improve overall plant efficiency and prevent premature failure in critical welding areas [72]. Bimetallic composites fabricated using conventional manufacturing techniques have been reported to suffer from various drawbacks, such as interfacial cracking, the formation of brittle intermetallic phases, porosity, residual stresses, and pronounced microstructural heterogeneity [73-75]. Similarly, dissimilar welding processes involve inherent challenges, including the presence of unmixed zones, non-uniform elemental diffusion, and elevated residual stresses, which collectively degrade joint integrity and mechanical performance [76]. In conventional dissimilar welding, the weld interface often exhibits macro-segregation features, such as islands and peninsulas, along with pronounced elemental diffusion between the joined materials, resulting in compromised structural integrity [77]. Moreover, conventional manufacturing routes generally involve multi-step processes, complex equipment requirements, long production times, and high costs [78]. Today, bimetallic materials can be fabricated using modern additive manufacturing (AM) technologies [79-81]. In recent years, the WAAM process has emerged as a promising technology for the production of such structures owing to its high deposition rate, low cost, and efficient material utilization [54, 82, 83].

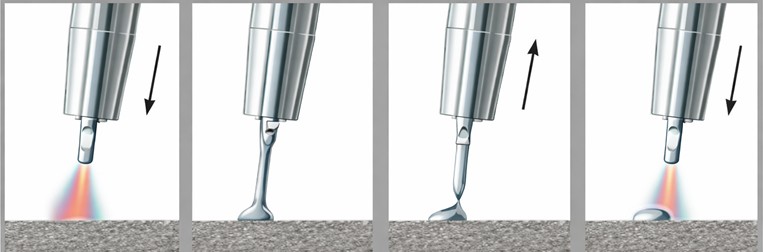

Fig. 2One cycle of the wire retraction mechanism in the CMT technique [66]

Singh et al. [84] successfully fabricated, for the first time, bimetallic structures composed of NiTi (Nitinol) and stainless steel (SS 316L) alloys using the WAAM technique. In their study, the fabricated bimetallic wall exhibited a defect-free macrostructure and a typical layer-by-layer morphology characteristic of the WAAM process. Elemental analyses revealed a gradual transition in the distribution of Cr, Ti, and Fe across the interface; however, the formation of brittle intermetallic phases such as TiCr₂, FeNi, TiNi₃, and Ti₂Ni was also observed. The presence of these intermetallic phases increased the hardness while simultaneously reducing the ductility. Consequently, although a macroscopically sound structure was obtained, the mechanical behavior of the fabricated samples was brittle.

Gogulraj and Rajamurugan [85] successfully fabricated bimetallic overlapping structures of DSS-2507 and IN-625 alloys using the WAAM-CMT process. The produced structures demonstrated proper metallurgical bonding across the overlapping zone, as confirmed by comprehensive microstructural analyses. Microhardness measurements indicated that the thermal input influenced the grain size and phase distribution in both DSS-2507 and IN-625 regions, with the overlapping zone exhibiting intermediate hardness values. FESEM and EDX investigations revealed the effective intermixing of the two materials and the presence of chromium segregation in the overlap. EBSD analysis provided detailed insights into the grain orientation, misorientation angles, and CSL boundaries, supporting the mechanical integrity of the bimetallic joint. This study highlights WAAM-CMT as an effective technique for producing dissimilar metal bimetallic structures with a controlled microstructure and promising mechanical performance.

Despite the demonstrated capability of Wire Arc Additive Manufacturing (WAAM) in producing medium- to large-scale metallic components, its application to bimetallic structures remains constrained by challenges such as unmet mechanical property requirements, high residual stresses, and the need for post-deposition treatments [32], as well as issues related to intermetallic phase formation, weldability, and thermophysical mismatches between dissimilar metals [86]. In this context, this review aims to comprehensively evaluate the potential of WAAM for the fabrication of bimetallic structures by examining the influence of process parameters, microstructural evolution, and mechanical performance based on current literature. Particular emphasis is placed on the effectiveness of advanced wire feeding techniques, such as WAAM-CMT, in achieving sound bimetallic bonding, with a focus on interfacial microstructural transformations and their impact on material properties. Accordingly, this review provides a systematic overview of recent developments, identifies the advantages and limitations of WAAM-based bimetal production, and offers an integrated perspective to guide future research and engineering applications in this emerging field.

2. Recent research progress in the GMAW-WAAM of bimetallic structures

Bimetallic structures are multi-material components designed to combine the advantageous properties of two metals. These properties include mechanical, thermophysical, and electrical characteristics, as well as enhanced corrosion and oxidation resistance [87, 88]. Various bimetallic studies have been conducted using the GMAW-WAAM process with different combinations, process parameters, and wire diameters. The most preferred materials for bimetal production with WAAM are stainless steel, nickel, low carbon steel, and copper alloys. Many studies have investigated the metallurgical and mechanical properties of bimetallic structures produced using WAAM. Ahsan Md. R. U. et al. [87] fabricated a bimetallic structure using 316L stainless steel and IN625 Inconel wires through the GMAW-WAAM (CMT) process. Microstructural examinations revealed that the 316L side of the layered structure consisted of ferrite dendrites within an austenitic matrix, whereas the IN625 side exhibited a completely austenitic microstructure (Fig. 3(a)). An increase in Laves phases was observed, particularly in the upper layers, due to the increase in Nb. These phases can be reduced using appropriate heat treatment methods. Ni, Nb, and Mo elements are dominant on the In625 side, while higher Fe contents are observed in the SS316L region (Fig. 3(b)). No intermetallic phase formation was observed at the interface between the two materials. Furthermore, continuous grain growth in the <001> direction of the FCC crystal structure was reported at the interface (Fig. 3(c-d)). This is a promising result for metallurgical bonds. Metallurgical bonding at the interface was achieved through thermomechanical equilibrium induced by thermal cycles and limited elemental diffusion. Consequently, epitaxial grain growth occurred, restricting segregation and the formation of brittle phases at the interface. Mechanical testing demonstrated high ductility with an ultimate tensile strength (UTS) of approximately 600 MPa and an elongation of 40 %. Fracture consistently occurred on the 316L side, further confirming the strong interfacial bonding between the two alloys. Sasikumar et al. [89] and Motwani et al. [90] also fabricated 316L-IN625 bimetallic structures using the WAAM process. These studies yielded microstructures and mechanical results similar to those obtained by Ahsan et al. [87]. Although the interface exhibited a distinct compositional gradient, no cracks, porosity, or intermetallic phase formation were observed. Moreover, mechanical testing revealed that fractures occurred on the 316L side in a ductile manner. These studies on the 316L-IN625 bimetallic structure support each other by revealing the microstructural continuity of the structure, the formation of the Laves phase, and its high mechanical properties.

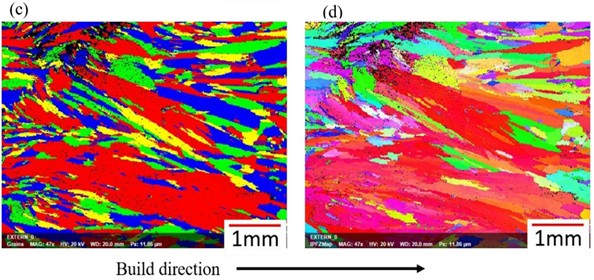

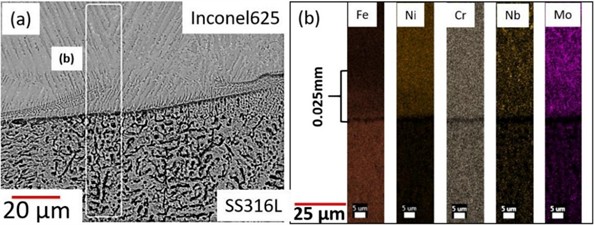

Fig. 3Analysis results at the interface: a) SEM micrograph with the location for elemental mapping, b) elemental mapping data, c) EBSD grain map, and d) EBSD IPF [87]

In another study involving 316L and IN625, Zhang et al. [91] fabricated a 316L-IN625 bimetallic structure using the GMAW-WAAM (CMT) process. The study compared two different deposition strategies: first 316L, then IN625 (316L-IN625) and first IN625, then 316L (IN625-316L). Microstructural analyses revealed that while the deposition strategy did not alter the overall microstructure, it significantly influenced the $\delta$-ferrite morphology and the amount of Laves phase. In the 316L section, the $\delta$-ferrite structure transformed from a lamellar form to a skeletal form as the number of layers increased. No defects were observed at the interface of the 316L-IN625 structure. However, when 316L was deposited onto IN625, remelting of IN625 occurred, leading to enhanced Fe-Ni diffusion and the formation of the Laves phase due to Nb-Mo enrichment. Consequently, interfacial cracks were formed as a result of increased thermal cycling and associated residual stresses. Mechanical testing revealed that the 316L-IN625 configuration exhibited a UTS of 444 MPa with an elongation of 38.6 %, and fractures occurred on the 316L side. In contrast, the IN625-316L configuration achieved a UTS of 406 MPa and an elongation of 23.6 %, with fracture initiation at the interface. This study clearly demonstrates the critical influence of deposition strategy on the structural integrity and mechanical performance of WAAM-fabricated bimetallic components. When studies conducted on stainless steel and Inconel 625 are evaluated, it is observed that the interfacial behavior is directly dependent on thermal cycles, elemental diffusion, and the deposition strategy. Ahsan et al. [87], Sasikumar et al. [89], and Motwani et al. [90] reported interfaces devoid of cracks and intermetallic phases in their studies. In contrast, Zhang et al. [91] observed in their study that the occurrence of interfacial cracks varied depending on the deposition strategy. These cracks are attributed to an increase in Laves phase formation resulting from the remelting of IN625, depending on the deposition strategy. These contrasting findings indicate that the interfacial characteristics of WAAM-fabricated 316L-IN625 bimetallics depend not only on the material combination but also on the deposition strategy.

Raut L. P. and Taiwade R. V. [92] produced a bimetallic structure using GMAW-WAAM(CMT) technology with LCS (ER70S-G) and 316LSi wires. In microstructural examinations, $\delta$-ferrite was observed within the austenitic matrix on the SS316LSi side, while polygonal ferrite was observed on the LCS side. No defects were observed at the interface. However, the diffusion of Cr from 316LSi to the LCS side was observed. Due to the solid solution hardening of Cr, the hardness of the interface increased by 22 %. Marefat F. et al. [93] produced a bimetal structure using 316L and LCS wires with GMAW-WAAM (CMT). In the study, the LCS was first deposited, then the WAAMed LCS wall was rotated 90°, and 316L was deposited onto the lateral surface of the LCS wall. The results demonstrated that when the second wire was deposited perpendicular to the deposition direction of the first wire, the interfacial shear strength increased by approximately 10 %. This improvement was attributed to the formation of interlocking regions at the interface (Fig. 4). This region was formed as a result of molten LCS and 316L flowing into each other without complete dissolution, thereby enabling more effective shear load transfer. Microstructural analyses revealed a martensitic transformation at the interface associated with carbon diffusion (Fig. 5). As a result of thermodynamic and diffusion mechanisms, the interfacial hardness increased to 463 HV.

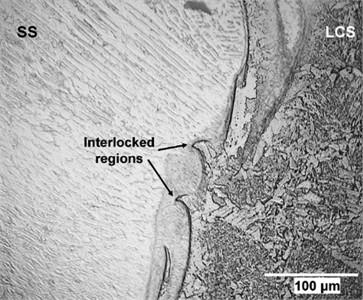

Fig. 4Interlocking at the interface of 316L/LCS WAAM wall [93]

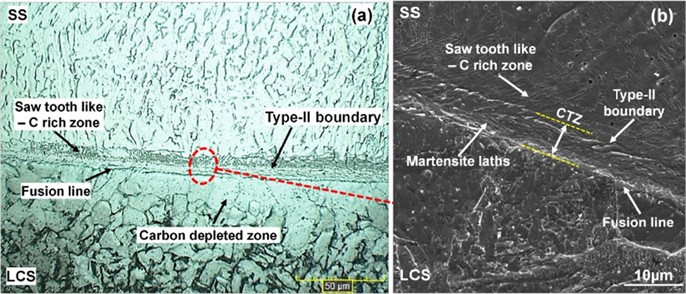

Fig. 5Microstructural characteristics of the LCS-SS316L bimetallic interface [93]

Ahsan Md. R. U. et al. [94] fabricated a bimetallic structure using LCS (ER70S6) and 316L stainless steel wires by the GMAW-WAAM (CMT) process and investigated the effects of post-heat treatment on its microstructural and mechanical properties. It was determined that the 950 °C, 1-hour condition was the optimum condition for the heat treatment applied to the LCS-316L bimetallic structure. Under these conditions, the UTS, yield strength (YS), and elongation increased by approximately 35 %, 25 %, and 250 %, respectively. These results demonstrate that post-heat treatment of WAAM-fabricated structures effectively improves both strength and ductility by stabilizing intermetallic phase formation. Furthermore, the fracture that occurred on the LCS side before heat treatment shifted to the 316L side after heat treatment. This also indicates that heat treatment strengthens the bond strength at the interface. Microstructural analyses revealed a ferrite-to-bainite transformation in the LCS region, while the 316L side exhibited a reduction in the $\delta$-ferrite content. The results demonstrate the significant effect of heat treatment applied to bimetals produced using WAAM on microstructure and mechanical properties. Ayan Y. and Kahraman N. [95] produced a bimetallic structure using the WAAM method with ER70S-6 LCS and 308LSi wire. In this study, a bimetallic structure was fabricated by alternating the wire material in each layer. Microstructural examinations revealed $\delta$-ferrite within the austenitic matrix on the 308LSi side and martensitic and bainitic phases in the LCS section (Fig. 6).

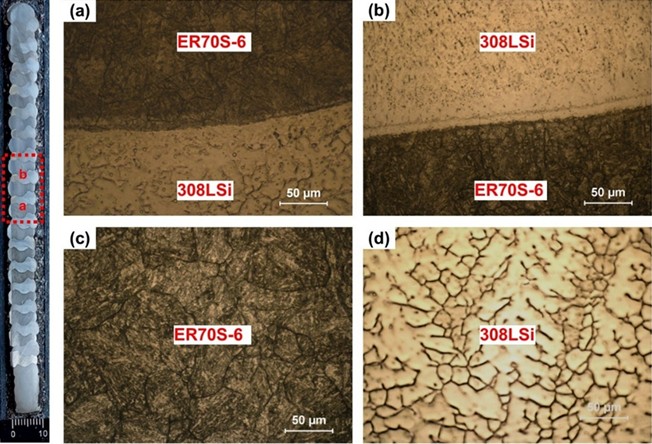

Fig. 6Microstructure of the bimetallic structure: a) 308LSi-ER70S-6 interface, b) ER70S-6-308LSi interface, c) ER70S-6 side near the interface, and d) 308LSi side near the interface [95]

The high Cr and Ni contents in 308LSi are known to promote martensite formation. In the ferrite-dominated ER70S-6 matrix, these elements are unable to stabilize austenite, resulting in the formation of martensite. No intermetallic phases were detected at the interlayer interfaces; however, a high density of martensitic structures was observed. Martensite development at the fusion boundary occurs as a result of carbon diffusion into the Cr-enriched region [96]. Mechanical testing revealed a tensile strength of 709 MPa and 31 % elongation, indicating that diffusion-controlled phase transformations enhance interfacial bonding. The occurrence of fractures on the 308LSi side also proves the strength of the interface bond. Chen Y. et al. [34] produced a bimetallic structure using GMAW-WAAM by changing the wire in each layer using LCS (ER70S-6) and 304 wires. Microstructural examinations of the produced bimetallic structure revealed that the austenitic matrix in the 304 layer transformed into martensite, whereas the ferrite grains in the LCS layer were refined. These transformations were attributed to the presence of a diffusion zone approximately 30 μm thick at the interfacial region. EDS analysis revealed the diffusion of Fe-Cr-Ni elements across the layers and their transition without the formation of intermetallic phases (Fig. 7). As a result of the microstructural changes, mechanical testing yielded a tensile strength of 999.8 MPa and an elongation of 28.2 %. These values are nearly twice the tensile and elongation data of both LCS and 304 materials. When WAAM-fabricated LCS-stainless steel bimetallic structures are examined, the interfacial characteristics are controlled by elemental diffusion and the associated phase transformations. Specifically, the diffusion of Cr and Ni elements enhances solid solution strengthening, while the diffusion of C increases interfacial hardness due to martensitic transformation. Furthermore, it has been reported that process parameters such as the deposition strategy, build direction, and heat treatment are determinative for the mechanical performance of the interface.

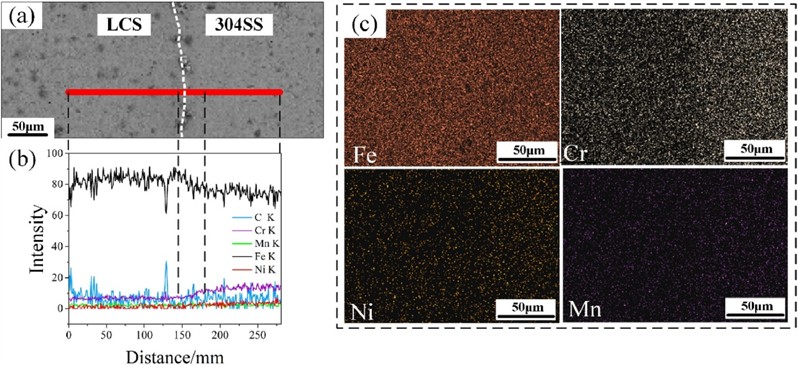

Fig. 7a) SEM image of the LCS/304 SS interface with the marked location for EDS line scan and b) EDS line scan results, c) elemental mapping across the interface [34]

Ainapurapu S. B. et al. [97] fabricated a bimetallic structure using a hot-forged 304L substrate and 308L stainless steel wire using the GMAW-WAAM (CMT) process. In this study, two different metal transfer modes, pulsed and spray, were utilized in the WAAM-based fabrication of bimetallic structures. Microstructural analyses revealed epitaxial grain growth at the interface for both modes. Spray-mode deposition formed columnar and coarse δ-ferrite grains due to the continuous heat input, whereas pulsed-mode deposition, with an increased nucleation rate induced by rapid cooling, yielded finer epitaxial grains. The thermomechanical differences between the two modes led to an increase in microhardness to 247 HV and an enhancement in tensile strength in the pulsed mode. This study shows that thermomechanical mechanisms related to the metal transfer mode determine the microstructure and mechanical properties of WAAM-fabricated bimetallic structures. Wang X. et al. [98] fabricated bimetallic structures using the GMAW-WAAM (CMT) process with two different deposition strategies: 316L/430 and 430/316L. Microstructural examinations revealed that different heat inputs lead to grain growth, carbide precipitation, and martensitic formation in the ferritic regions. In the austenitic 316 L regions, the austenite + $\delta$-ferrite structure was maintained. For the 430 materials, the microstructural evolution with increasing heat input proceeded as F → F + (Cr, Fe)₂₃C₆ → F + M. Thermodynamically induced phase transformations, especially at grain boundaries, led to martensite formation and consequently increased high-temperature brittleness. At the interface, the diffusion of Ni from the 316L side into the 430 side induced the formation of martensite and acicular ferrite. Consequently, the highest hardness value (337 HV) was measured near the interface on the 430 side. Mechanical testing showed that all specimens exhibited brittle fracture on the ferritic 430 side. Furthermore, the deposition strategy was found to significantly influence tensile strength, with the 430/316L strategy providing a higher ultimate tensile strength (265.8 MPa) compared to the 316L/430 strategy. Tanwar R. S. and Jhavar S. [99] produced a bimetallic structure using 316L and 309 wires with GMAW-WAAM. In this study, three layers were formed in 316L-309-316L. Microstructural investigations revealed that Cr and Ni diffusion occurred at the interface as a result of repeated melting-solidification effects. The high Cr content of the 309 steel increased the Creq/Nieq ratio at the interface and promoted solidification in the FA (ferrite–austenite) mode. Consequently, hot cracking at the interface was suppressed. Tribological testing showed that the coefficient of friction (CoF) of the bimetallic structure (0.42-0.58) was lower than that of 316L and 309 materials. This improvement was attributed to the increased surface hardness resulting from a higher ferrite phase fraction. After wear, Fe₂O₃, Fe₃O₄, and CrO₂ oxide phases, as well as deformation-induced $\alpha$-martensite formation, were observed on the surfaces. These oxide layers are considered to enhance surface stability during wear, thereby improving frictional characteristics. These results indicate that the 316L-309 combination is suitable for tribological components (pumps, valves, etc.) operating at high temperatures. When studies on stainless steel-based bimetallic materials produced by WAAM are considered together, it has been observed that the interfacial microstructure and mechanical behavior are related to heat input, deposition strategy, and metal transfer mode. Differences among metal transfer modes determine grain size and hardness distribution by altering nucleation rates and grain growth mechanisms. In different deposition strategies, phase transformations such as martensite formation and carbide precipitation occur. Furthermore, the diffusion of Cr and Ni at the interface, along with the increase in the Creq/Nieq ratio, promotes solidification in the FA mode, thereby preventing hot cracking. These findings indicate that interfacial integrity and mechanical performance can be optimized through appropriate process parameters.

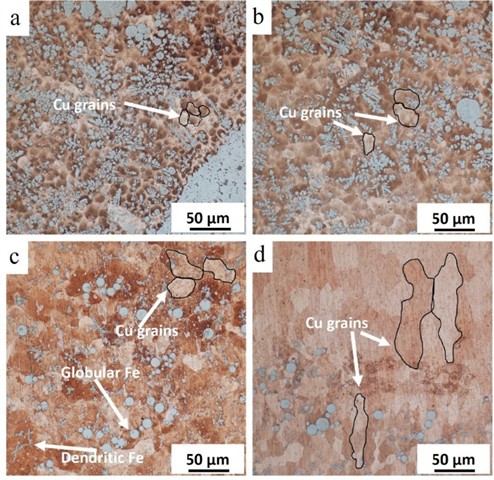

Fig. 8The micrographs of 316L/Cu bimetallic structure at a) interface of 316L and Cu; b) center of 1st Cu layer; c) center of 2nd Cu layer; d) third Cu layer [101]

Kaur H. et al. [100] produced a bimetallic structure using CMT-WAAM with super duplex stainless steel (SDSS) and Inconel 625. The produced bimetallic structure was then subjected to an aging treatment at 800 °C for 2 hours. It was observed that the Cr, Ni, and Fe elements decreased, and C was enriched in the dendrite regions of SDSS and Inconel 625. This was relatively higher in the aged structure. Aging treatment resulted in the formation of NbC, ${\gamma }^{\text{'}\text{'}}$ (Ni₃Nb), and Laves phases (Ni₂Ti, Cr₂Ti). In corrosion tests, the structure exhibited the highest pitting potential of 840.8 mV before aging, while this value decreased to 372.1 mV after aging. This loss of pitting resistance was associated with the formation of NbC and ${\gamma }^{\text{'}\text{'}}$ (Ni₃Nb) in the interfacial region. However, the overall corrosion rate decreased to 1.84×10^-7 mpy. However, the overall corrosion rate decreased to 1.84×10^-7 mpy. In conclusion, the SDSS/IN625 bimetal combination can improve corrosion performance, but thermal aging conditions need to be optimized. Tomar B. and Shiva S. [101] investigated a bimetallic structure produced using GMAW-WAAM (CMT) with 316L and pure copper (Cu) wires. Microstructural examinations revealed that the Fe phase on the Cu matrix solidified in a globular and dendritic morphology (Fig. 8(a-b)). This result is associated with the solidification of Fe as an Fe-rich discrete phase within the Cu matrix due to the limited mutual solid solubility in the Fe-Cu system and the high cooling rates. Furthermore, a transition zone approximately 6 mm thick was observed, where Fe precipitated in a globular dendritic form within the Cu matrix (Fig. 8(c-d)). The formation of this transition region is considered to result from the inability to feed both wires simultaneously and from repeated melting-solidification cycles. Additionally, no intermetallic phases or defects were reported. This indicates that the formation of undesired phases in the Fe-Cu system can be limited using WAAM. The mechanical testing showed a UTS of 641 MPa in the horizontal direction and 427 MPa in the vertical direction, with an elongation of approximately 20 %. The mechanical performance of the bimetallic structure was found to be superior to that of pure Cu, but lower than that of 316L. Munusamy S. and Jerald J. [102] investigated a bimetallic structure fabricated by the GMAW-WAAM process using Grade 91 steel and Monel 400 wires. Microstructural examinations revealed that Grade 91 steel contained lath martensite and M₂₃C₆-type carbide precipitates, which increased its strength, while Monel 400 retained its ductility due to its homogeneous FCC structure (Fig. 9).

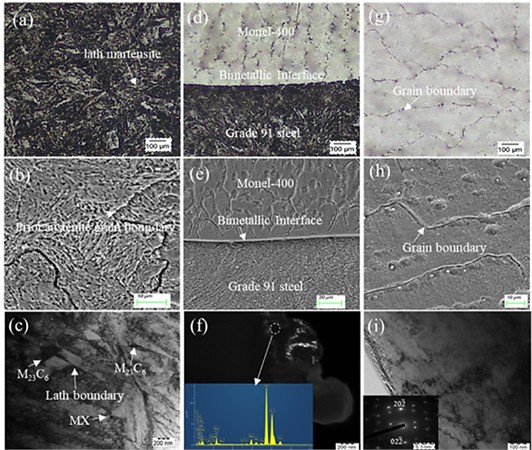

Fig. 9Microstructure analysis of WAAM samples using OM, SEM, and TEM: a)-c) WAAMed wall grade 91 steel, d)-e) bimetallic interface, f) TEM/EDS analysis at the interface, g)-i) WAAMed wall Monel-400 [102]

SEM-EDS analyses reported the presence of Fe, Ni, Cr, and Cu elements in the interfacial region. The combination of these elements provides a balance between mechanical and corrosion properties. Ductile fracture was observed to be dominant in all samples. In addition, oxide phases such as Fe₂O₃, NiO, and CuO were observed on the surface. These phases contribute to hardness and corrosion resistance. Han S. et al. [103] produced a bimetallic structure using ER80S-G and MF6-55GP wires with GMAW-WAAM (CMT). Microstructural analyses revealed the presence of ferrite and pearlite phases in the ER80S-G layers, while the MF6-55GP layers exhibited martensite, retained austenite, and carbide precipitates. These findings indicate a pronounced difference in phase and hardness between the two materials. However, no pores or cracks were observed in the interfacial region. Thus, the low heat input of the CMT-WAAM process enabled the bonding of two dissimilar materials through a transition region. Mechanical testing showed that the bimetallic structure exhibited a UTS of 447.79±24.32 MPa, which was comparable to that of ER80S-G but lower than that of MF6-55GP. This reduction in strength was attributed to the accumulation of residual stress and microstructural discontinuities at the interface.

Meng et al. [104] investigated a bimetallic material produced using 316L stainless steel and S214 bronze wires by the GMAW-WAAM (CMT) process. Different heat inputs and deposition strategies (316L/S214 and S214/316L) were used for the bimetal production. Microstructural analyses revealed that in the 316L layers, fine-grained austenite and lath ferrite formed under low heat input conditions, whereas a skeletal ferrite structure developed at higher heat inputs. In the S214 bronze layers, a transformation from an $\alpha$-Cu + $\gamma$ + Fe-rich phase to an $\alpha$-Cu + Fe-rich phase + K phase was observed. This transformation can be attributed to the increased diffusion caused by the higher heat input. In the interface region, Fe-based solid solutions and intermetallic phases such as AlCrFe₂, AlNi₃, and Al₄Cu₉ were detected. It has been reported that although hardness increased due to these phases, the tendency for brittleness also increased. At low heat input, a wider transition region exhibiting a honeycomb morphology formed due to differences in diffusion behavior between Cu and Fe and the presence of large thermal gradients. With increasing heat input, Marangoni convection was enhanced, resulting in more homogeneous mixing within the interfacial region. Tensile tests revealed that the fracture occurred on the S214 bronze side of the bimetallic structure. The UTS varied with deposition strategy, reaching 500 MPa for S214/316L and 350 MPa for 316L/S214. Hasani N. et al. [105] produced a bimetallic structure using GMAW-WAAM (CMT) with Inconel 718 wire and S275 substrate material. The bimetallic structure was examined under three conditions: as-built (AB), solution-treated (ST), and solution-treated + aged (STA). In the AB condition, pronounced microsegregation (primarily of Nb) and the formation of Laves phases were reported due to rapid solidification and limited elemental diffusion (Fig. 10(a)). The ST treatment at 1080 °C was found to partially dissolve these phases, but was insufficient for complete dissolution (Figure 10(b)). Following solution treatment (ST), the flattening of grain boundaries was attributed to the partial dissolution of Laves phases and carbides. At higher solution treatment temperatures, grain coarsening occurred, which facilitated dislocation motion and consequently led to a degradation in mechanical properties.

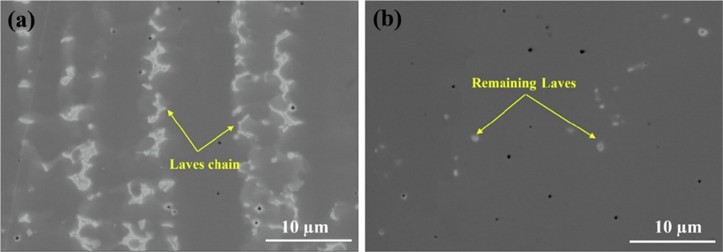

Fig. 10SEM micrograph of WAAM-IN718: a) as-built/AB, and b) solution treated/ST conditions [105]

Spalek N. et al. [106] produced a bimetallic structure using GMAW-WAAM with high-strength X90 steel and high-ductility SG2 steel. EDX analysis revealed diffusion of Ni and Cr between the two steels. This diffusion resulted in a balance in hardness values, forming a similar microhardness profile for both materials in the range of approximately 185-195 HV. The absence of sharp hardness gradients indicates that no interfacial discontinuities were formed and that diffusion occurred in a controlled manner. In tensile tests, the bimetallic structure exhibited a UTS of 600 MPa and an elongation of 23 %. Based on these results, a balanced value emerged between SG2 and X90. Manohar G. et al. [107] investigated the use of a CuNi (70/30) interlayer in a bimetallic structure to be produced using WAAM with 304L and AA2319 aluminum. Microstructural analyses revealed that the CuNi interlayer acted as a diffusion barrier between the 304L and AA2319 layers. This barrier significantly reduced the formation of brittle intermetallic compounds, such as Fe₂Al₅ and FeAl₃, which typically form at the Al-Fe interface. Despite the increase in hardness due to the uniform diffusion of Fe, Ni, and Cu at the interface, no brittle phases were formed. However, intermetallic phases, such as AlCu and AlCu₄Ni, at the interface caused high local hardness but negatively affected ductility. These results demonstrate that the CuNi interlayer strengthens the metallurgical bond in the WAAM-fabricated Al-steel bimetal by suppressing intermetallic formation; however, the intermetallic phases formed at the CuNi-Al interface continue to influence the mechanical behavior. Jadhav S. et al. [108] investigated the bimetallic structure produced using different heat inputs from Ti6Al4V and NbZr1 wires with the GMAW-WAAM method. Microstructural analysis revealed the absence of cracks, pores, or intermetallic compounds at the interface. Island and dendritic regions containing the ($\beta$Ti, Nb) and ($\alpha +\beta$Ti, Nb) solid solutions were observed at the interface (Fig. 11). The formation of island-like regions is attributed to the difference in melting temperatures between the Ti6Al4V and NbZr1 alloys, as well as to the flow behavior within the molten pool. EDS analyses showed that Nb diffusion toward the Ti6Al4V side increased with increasing heat input. The enhanced Nb diffusion did not lead to the formation of intermetallic phases at the interface but instead promoted solid-solution formation. Microhardness measurements showed that the hardness at the interface decreased to 99.9-339 HV. Hardness differences at the interface are due to microstructural heterogeneities and changes in local composition. In tensile results, the highest UTS was 567 MPa at the 180A parameter (lowest heat input). Fractures occurred on the NbZr1 side of the specimens. This indicates that the bond at the interface is strong. Kesarwani S. et al. [109] produced a bimetallic structure using ER5356 (Al-Mg) and ER4043 (Al-Si) aluminum wires with GMAW-WAAM (CMT). The study was conducted under different deposition directions (unidirectional/bidirectional) and current combinations. The results showed that the bidirectional deposition strategy significantly improved microstructural integrity. In bidirectionally fabricated specimens, a more uniform heat distribution was achieved, resulting in equiaxed and fine-grained microstructures. In the unidirectional deposition strategy, pronounced heat accumulation detrimentally affected the solidification dynamics, leading to the formation of discontinuous dendritic structures and pronounced porosity. Furthermore, it has been shown that strength-enhancing intermetallic phases, such as Mg₂Si, Al₁₂Mg₁₇, and AlMg, are concentrated in this region (Fig. 12). This indicates that the thermal cycles varying with the deposition strategy directly influence elemental diffusion and phase formation. In mechanical tests, the bidirectional wall exhibited the best performance, with a UTS of 205 MPa and an elongation of 18.9 %. In unidirectional samples, strength and ductility decreased due to directional heat accumulation. Fractures occurred on the ER4043 side during the tensile tests. This indicates that the bimetallic interface has better strength than ER4043. When WAAM bimetal studies with different alloy combinations are examined, heat input, metal transfer mode, deposition strategy, and heat treatments directly influence the interfacial microstructure by determining the thermal cycles and phase transformations associated with element diffusion. At low heat inputs, epitaxial grain growth and solid solution formation are more dominant, whereas at high heat inputs, intermetallic phases, Laves phases, and martensitic transformations occur. In mechanical tests, the fact that fracture does not occur at the interface in many studies indicates the formation of a strong metallurgical bond through WAAM. These findings reveal that the performance of bimetallic structures produced by WAAM depends more on process parameters than on alloy combinations.

Recent studies on bimetallic structures produced using GMAW-WAAM have highlighted both the significant potential and inherent challenges of this additive manufacturing technique. WAAM allows the combination of different metals and alloys within a single component, enabling region-specific optimization of mechanical and corrosion-resistant properties. However, challenges such as interfacial intermetallic formation, residual stresses, and porosity remain critical issues, affecting the mechanical integrity and long-term performance of WAAM-produced bimetallic components. Several studies have proposed strategies to mitigate these challenges, including careful material selection, interlayer design, heat input control, and post-processing treatments, which can enhance the structural reliability of WAAM bimetal components. Overall, the literature indicates that WAAM holds great potential for industrial bimetallic manufacturing, but further research is needed to fully understand interfacial phenomena and to optimize processing conditions for reliable performance.

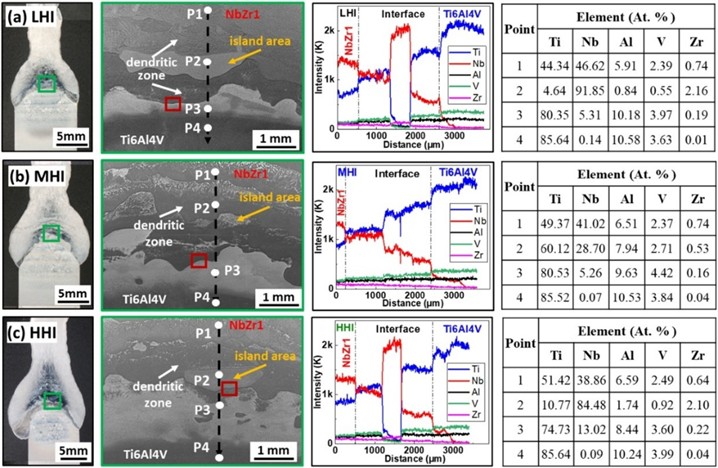

Fig. 11EDS line and point scan results at the interface for the a) Low heat input (LHI), b) Medium heat input (MHI), and c) High heat input (HHI) conditions [108]

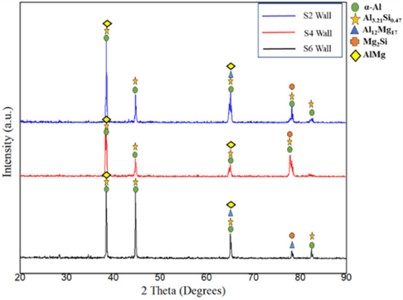

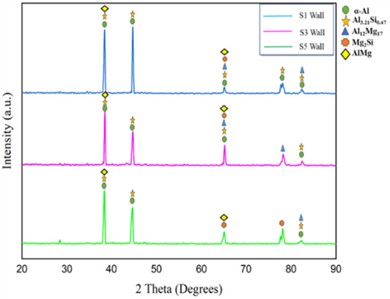

Fig. 12XRD analysis at the interface layer of the bimetallic wall: a) bidirectional walls, b) unidirectional walls [109]

a)

b)

A comprehensive overview of studies on bimetallic structures fabricated by WAAM, including both GMAW-WAAM and its CMT variant, is presented in Table 2. The table covers numerous studies conducted on various material systems, such as steel, Inconel, titanium, aluminum, copper, and nickel-based alloys. For each system, the main process parameters, microstructural characteristics, and mechanical performance values are systematically presented, enabling a comprehensive comparison between different studies.

3. General remarks and prospects

4. Conclusions

This study provides a comprehensive overview of recent advancements in bimetallic structures fabricated using the GMAW-WAAM method. The microstructural characteristics, interface morphology, mechanical properties, and the advantages and challenges of the fabricated bimetallic structures were examined. Studies show that bimetals with strong interface bonds and advanced mechanical properties can be produced by correctly selecting process parameters and material combinations.

1) The GMAW-WAAM method is a promising technique for producing bimetals with various material combinations (stainless steel, copper, nickel, and low-carbon steel). In particular, 316L, IN625, and LCS wires have been common research subjects.

2) It has been observed that, in steel/steel and steel/nickel combinations, the formation of intermetallic phases can be effectively suppressed through appropriate heat input and deposition strategies, thereby enabling the achievement of a sound metallurgical bond.

3) In stainless steel-LCS bimetallic systems, the interfacial characteristics have been reported to be primarily controlled by phase transformations associated with the diffusion of C, Cr, and Ni. The diffusion of carbon toward the stainless steel side leads to martensitic transformations and an increase in hardness at the interface. This indicates that diffusion-induced phase formations are critical to the mechanical properties of the interface.

4) In aluminum-steel, copper-steel, and titanium-based bimetallic systems, the interface exhibits more complex behavior due to limited mutual solubility and mismatches in the coefficient of thermal expansion (CTE). Intermetallic phase formation can be suppressed by reducing the heat input, bidirectional deposition strategies, or by the use of interlayer materials.

5) Chemical incompatibility results in the formation of brittle intermetallic phases and interfacial cracking. Therefore, material selection is a critical parameter in the WAAM-based fabrication of bimetallic structures.

6) Process parameters such as heat input, wire feed speed, and travel speed directly affect the interfacial microstructure and mechanical properties.

7) CMT-based GMAW-WAAM applications provide more balanced mechanical properties due to the lower heat input.

8) Most studies have primarily focused on tensile strength as a mechanical testing method. Performance criteria such as fatigue, creep, corrosion, and impact behaviors are not yet sufficiently understood.

9) Despite the advantages of bimetallic production using GMAW-WAAM, several limitations remain. The formation of intermetallic and brittle phases, porosity, residual stresses, and cracks are among the critical defects. These defects can be overcome by producing new wire materials, optimizing process parameters, and using heat treatments.

The key contribution of this review is the critical of interfacial mechanisms, process-structure-property relationships, and material compatibility considerations in GMAW-WAAM fabricated bimetallic systems, which have previously been reported in a fragmented manner across the literature. For future studies, transition regions and interlayer designs, process and thermal control strategies for interfacial microstructures, hybrid manufacturing approaches integrated into the WAAM process, and optimization studies supported by experimental data are recommended.
