Study on the design and structural optimization of excitation blocks for vibrators

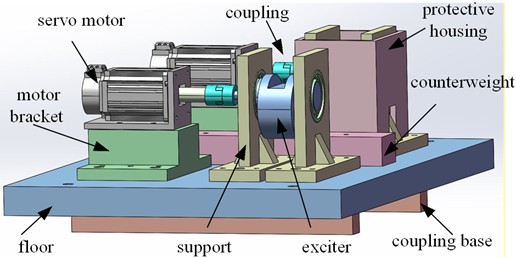

2.1. Dynamic modeling of the excitation force

The excitation force arises from the centrifugal forces generated by the rotating eccentric masses. For a single eccentric block with mass $m$ and eccentricity $e$, rotating at a constant angular velocity $\omega$, the instantaneous centrifugal force vector can be expressed as:

where $\theta \left(t\right)$ is the instantaneous angular position and ${\mathbf{e}}_x$ are ${\mathbf{e}}_y$ unit vectors in the horizontal and vertical directions, respectively.

In the proposed dual-eccentric configuration, two identical eccentric blocks rotate synchronously at the same angular velocity $\omega$ in a symmetric, counter-rotating manner. Under this condition, the horizontal components of the centrifugal forces are equal in magnitude but opposite in direction, thereby achieving complete self-cancellation in the horizontal plane. In contrast, the vertical components are constructively superimposed in phase, producing a purely unidirectional periodic excitation force, as illustrated in Fig. 2.

Fig. 2Working principle and mechanical model of the exciter

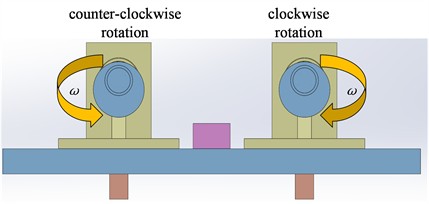

a) Schematic of the internal working principle

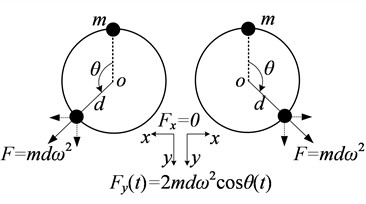

b) Vector synthesis of the centrifugal force components

Based on this vector synthesis mechanism, the resultant peak vertical excitation force, $F_y$, produced by the entire vibrator system can be derived in the following closed form:

Eq. (2) provides the analytical foundation for evaluating the excitation force throughout this study. It explicitly demonstrates that the excitation magnitude is uniquely governed by the mass distribution ($m$ and $e$) and the angular velocity ($\omega$). Since the operating frequency is dictated by motor and system limitations, the excitation force can be effectively optimized through the geometric design of the eccentric blocks. This explicit relationship serves as the physical basis for the parametric modeling, sensitivity analysis, and multi-objective optimization discussed in the subsequent sections.

2.2. Parametric modeling of mass properties

To facilitate systematic sensitivity analysis and multi-objective optimization, a closed-form, parametric representation of the eccentric block’s mass properties is essential. Among conventional geometries – such as semi-cylindrical, circular, and annular forms – the annular-sector configuration offers the highest degree of geometric flexibility. By modulating its central angle, this geometry can seamlessly represent semi-cylindrical configurations ($\varphi =$ 180°) or approximate annular structures within specific parameter limits.

Accordingly, a unified sector-based geometric model is adopted in this study, as illustrated in Fig. 3. The eccentric block comprises a solid cylindrical core of radius $r$ and a surrounding annular sector with outer radius $R$, thickness $h$, and a total aperture angle $\varphi =2\beta$. Let $\rho$ denote the material density; the total mass of the eccentric block is then expressed as:

where $\beta$ is the half-central angle expressed in degrees.

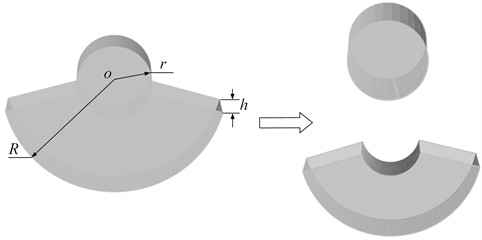

Fig. 3Geometric configuration and design parameters of the annular-sector eccentric block

The eccentricity $e$ is defined as the distance between the composite centroid of the block and the rotation center. Due to its rotational symmetry, the cylindrical core yields zero net contribution to the overall eccentricity. Consequently, the resultant eccentricity of the entire eccentric block is derived as:

where $\beta$ is the half-central angle of the sector. In the analytical formulations, $\beta$ is expressed in degrees when used as a standalone variable, while its radian equivalent is adopted within trigonometric functions (e.g., $\mathrm{s}\mathrm{i}\mathrm{n}\beta$) to ensure numerical correctness.

By substituting Eqs. (3) and (4) into Eq. (2), the excitation force can be explicitly expressed as a function of the geometric design variables $\left(R,r,h,\beta \right)$. This closed-form formulation enables rapid and robust evaluation of dynamic performance, facilitating efficient large-scale parametric studies and multi-objective optimization.

2.3. Driving power model

The driving power $P$ is a critical metric for motor specification, thermal safety, and overall system efficiency. It is determined by the total driving torque required to overcome inertial resistance, viscous damping, and gravitational effects during rotation:

where the total driving torque $T_{total}$ is decomposed as:

The inertial torque $T_{\alpha }$ required to accelerate the eccentric block is defined by:

where $J$ is the mass moment of inertia and $\alpha$ denotes the angular acceleration. Based on the annular-sector geometry illustrated in Fig. 3, the total moment of inertia is derived as:

The damping torque $T_d$ accounts for viscous losses in bearings and transmission components and is modeled as:

where $d$ represents the viscous damping coefficient.

The gravitational torque $T_g$ induced by the eccentric mass is expressed as:

where $g$ denotes gravitational acceleration.

For conservative motor sizing and the comparative evaluation of different geometries, the peak driving power during the start-up phase is estimated by evaluating Eq. (5) under the worst-case orientation, which corresponds to the maximum gravitational torque. This approach ensures that the selected motor can reliably initiate rotation from a standstill under maximal load conditions.

2.4. Modeling assumptions

To balance analytical tractability with physical fidelity, the following assumptions are systematically adopted throughout the modeling, sensitivity analysis, and optimization procedures. All subsequent numerical simulations strictly adhere to this established framework:

(1) Gravitational Loading: The gravitational torque is evaluated at its worst-case orientation to ensure a robust estimation of the maximum power demand.

(2) Rigid-Body Dynamics: The entire system is modeled as a strictly rigid-body system; consequently, the elastic deformation of the shafts, and supporting structures is omitted [20].

(3) Viscous Damping: Rotational resistance is represented by a linear viscous damping model with a constant coefficient, thereby aggregating the complex frictional losses in the bearings and transmission components [28].

(4) Kinematic Characteristics: During the start-up phase, a constant angular acceleration is assumed, facilitating a conservative estimation of the peak driving power [29].

(5) Coupling Boundary Conditions: Explicit ground-structure coupling effects are excluded from this study; instead, the analysis focuses exclusively on the intrinsic excitation generation and the corresponding motor-side power requirements [17].

Within the scope of these assumptions, the proposed analytical framework provides a consistent, transparent, and computationally efficient foundation for the sensitivity analysis, multi-objective optimization, and robustness evaluation presented in the subsequent sections.

3.1. Optimization objectives and the extreme-frequency substitution strategy

This study aims to simultaneously address two inherently conflicting objectives: maximizing the total excitation force $F_y$ and minimizing the operational driving power $P$, subject to prescribed structural and operational constraints.

However, a direct formulation of this multi-objective problem across the entire operational bandwidth, $\omega \in [{\omega }_{min} ,{\omega }_{max}]$, presents substantial computational and theoretical challenges. First, evaluating system performance at every discrete frequency point would impose a prohibitive computational burden within iterative evolutionary frameworks, such as NSGA-II. Second, aggregating frequency-dependent metrics via weighting factors often lacks rigorous physical justification, which may bias the optimization toward solutions that are mathematically optimal but physically inconsistent.

These impediments can be resolved by exploiting the intrinsic monotonicity of the centrifugal excitation mechanism. Based on the analytical models established in Section 2, and as evidenced by the normalized results in Fig. 4, both the total excitation force $F_y$ and the driving power $P$ increase monotonically with the angular frequency $\omega$ for any fixed geometric configuration.

Fig. 4Normalized variations of total excitation force and driving power with angular frequency

This monotonic relationship permits a rigorous dimensionality reduction of the original dynamic optimization problem. Specifically, maximizing the total excitation force over the entire operating bandwidth is functionally equivalent to maximizing $F_y$ at the lowest working frequency (${\omega }_{min}$), while minimizing the overall power demand is effectively addressed by minimizing the driving power $P$ at the highest frequency (${\omega }_{max}$).

Consequently, an Extreme-Frequency Substitution Strategy (EFSS) is introduced, whereby the original frequency-dependent problem is reformulated as a static optimization task evaluated at these two spectral extremes. The resulting objective functions are defined as:

where $F_y\left({\omega }_{min}\right)$ represents the total excitation force at the lowest working frequency, and $P\left({\omega }_{max}\right)$ represents the driving power at the highest working frequency. This reformulation preserves the physical essence of the original problem while significantly enhancing computational efficiency and numerical robustness.

3.2. Design variables and bounding constraints

The design variables are derived directly from the generalized parametric model presented in Section 2.2 and are defined as:

where, $R$ denotes the outer radius (m), $r$ is the inner radius (m), $h$ represents the axial thickness (m), and $\beta$ is the half-central angle (degrees).

To ensure manufacturability and assembly feasibility, each design variable is strictly constrained within a physically admissible range dictated by engineering practice and spatial limitations. These boundary constraints ensure that the resulting exciter configuration remains within the operational envelope of the seismic vibrator. The corresponding parameter bounds are summarized in Table 1.

3.3. Dynamic and geometric constraints

To ensure physical realizability, operational safety, and engineering relevance, the following design constraints are imposed:

Geometric Feasibility Constraints: To maintain the structural integrity of the annular sector, the outer radius $R$ must strictly exceed the inner radius $r$. A safety margin (${\delta }_{safe}$) is introduced to account for structural stability and manufacturing tolerances:

where ${\delta }_{safe}=$ 0.005 is set to a representative engineering value.

Operational Constraints: The operating frequency is constrained within 5 Hz $\le \omega \le$25 Hz, which defines the effective working bandwidth. Consequently, the associated angular velocity $\omega$ must satisfy:

where $N_{rated}$ denotes the rated speed of the servo motor (rpm).

Power Constraints: To preclude motor overloading, the driving power $P\left({\omega }_{max}\right)$ a at the peak frequency must not exceed the motor's rated power $P_{rated}$. Furthermore, to ensure the optimization results maintain practical utility and do not converge to trivial low-power solutions, a lower limit $P_{min}$ is established. The driving power constraint is thus formulated as:

For the numerical evaluation of dynamic performance indices, specific parameter values are assigned in accordance with the physical assumptions in Section 2.4. The angular acceleration during the start-up phase is defined as a constant $\alpha =$ 25$\pi$ rad/s², representing a conservative ramp-up profile within the motor’s dynamic capabilities. Rotational losses are parameterized by an equivalent viscous damping coefficient $d=$ 0.005 N·m·s/rad, which is adopted as a representative value for the considered operating range.

With the objective functions, design variables, and constraints fully defined, the multi-objective optimization problem is now well-posed. All Pareto-optimal solutions obtained in the subsequent analysis are guaranteed to reside within a physically admissible and practically feasible design manifold.

4.1. Methodology and workflow

The Sobol method is a variance-based global sensitivity analysis technique uniquely suited for models exhibiting strong nonlinearity and complex multi-variable coupling. The core principle involves decomposing the total variance ($Var\left(Y\right)$) of the model output ($Y=f\left(X\right)$) into fractional components attributable to individual input variables and their high-order interactions.

The total variance of the output $Y$ can be decomposed into a sum of variances contributed by each input variable $X_i$ and their interaction terms:

First-order sensitivity index ($S_1$): This index quantifies the principal effect of an individual variable $X_i$ on the output variance when considered independently. It is defined as the ratio of the conditional variance to the total variance:

Total-order sensitivity index ($S_T$): This index measures the aggregate influence of $X_i$, encompassing both its direct contribution and all higher-order interactions with other variables:

where $X_{~i}$ denotes the set of all input variables excluding $X_i$. A significant divergence between S_T and $S_1$ serves as a definitive diagnostic of strong nonlinear coupling effects.

To ensure uniform coverage of the high-dimensional design space, Saltelli’s extension of the Sobol quasi-random sequence was employed. A fixed random seed was utilized to ensure numerical reproducibility. The base sample size $N$ was progressively increased from 504 to 9,500, corresponding to a final total of 9,500 model evaluations $\left(2k+2\right)\times N$, $k=$ 4. All samples were evaluated using the direct analytical models derived in Section 2, thereby eliminating surrogate-induced errors and preserving the physical fidelity of the nonlinear dynamic behavior.

The convergence behavior of the Sobol sensitivity indices is illustrated in Figs. 5 and 6. For the dominant parameters $R$ and $r$, both first-order and total-order indices rapidly converge to stable plateaus, indicating robust independent contributions. In contrast, the indices associated with thickness $h$ and angle $\beta$ exhibit moderate fluctuations at lower evaluation counts, suggesting that their influence is manifested primarily through interdependent interactions rather than isolated effects.

Once the number of model evaluations exceeds approximately 9,500, all sensitivity indices exhibit negligible variation with further increases in sample size, indicating statistical convergence. The quasi-random nature of the Sobol sequence further improves numerical stability compared with conventional Monte Carlo sampling. This convergence threshold serves as the criterion for statistical adequacy, thereby ensuring the reliability of the subsequent sensitivity ranking.

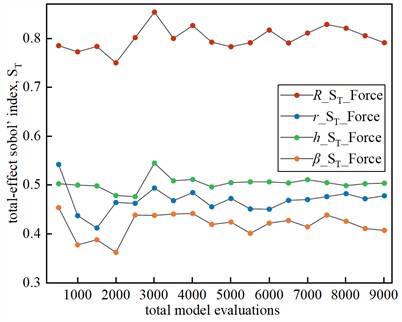

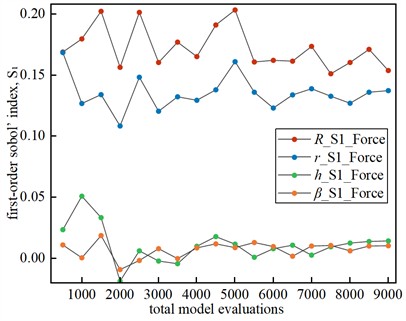

Fig. 5Sobol sensitivity indices for total excitation force

a) First-order indices.

b) Total-order indices

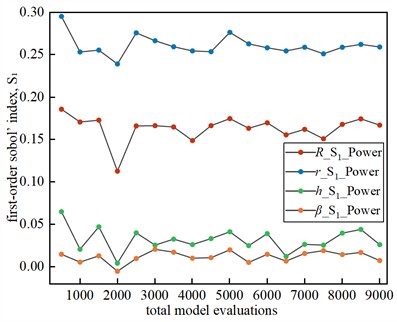

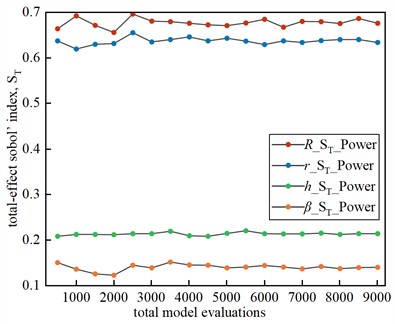

Fig. 6Sobol sensitivity indices for driving power

a) First-order indices.

b) Total-order indices

4.2. Results of sensitivity analysis

The converged Sobol indices summarized in Fig. 7 reveal that the outer radius $R$ is the most influential parameter governing both the total excitation force and driving power. This is underscored by its dominant first-order and total-order sensitivity indices, which account for the majority of the output variance. The inner radius r also exerts a substantial impact, though its influence is channeled primarily through strong interaction effects with $R$. In contrast, the thickness $h$ and half-central angle $\beta$ exhibit minimal independent contributions ($S_1\approx$ 0). Nevertheless, their non-zero total-order indices suggest a latent influence through higher-order nonlinear coupling, particularly when interacting with the dominant radial parameters. The persistent condition $S_T>S_1$ across all variables quantitatively confirms that the vibrator’s dynamic response is governed by intricate multivariable interplay rather than separable, linear parameter effects.

These findings have direct strategic implications for structural optimization. The pronounced dominance of $R$ and $r$ identifies them as the primary design drivers that must be prioritized. Furthermore, the significant interaction effects validate the necessity of a global multi-objective optimization framework, precluding the effectiveness of sequential or single-parameter tuning strategies. Concurrently, the non-trivial coupling involving $h$ and $\beta$ underscores that seemingly secondary geometric features can exert a meaningful leverage on system performance through synergistic interaction pathways. Consequently, this sensitivity analysis offers rigorous theoretical justification for the multi-objective optimization strategy detailed in the subsequent section.

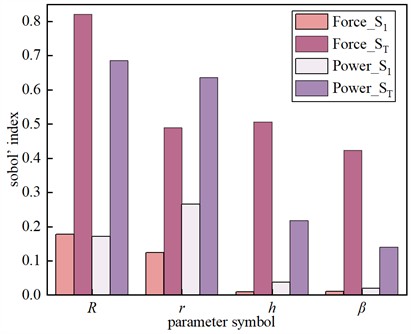

Fig. 7First-order and total-order Sobol sensitivity indices for total excitation force and driving power

5.1. Optimization algorithm and performance evaluation

The Non-dominated Sorting Genetic Algorithm II (NSGA-II) was employed to solve the coupled multi-objective optimization problem, balancing the maximization of total excitation force against the minimization of driving power. NSGA-II was selected for its proven efficacy in navigating nonlinear, non-convex Pareto fronts absent gradient information – a characteristic particularly advantageous for complex systems governed by nonlinear geometric-dynamic coupling [31], [32].

The overall optimization workflow is illustrated in Fig. 8.

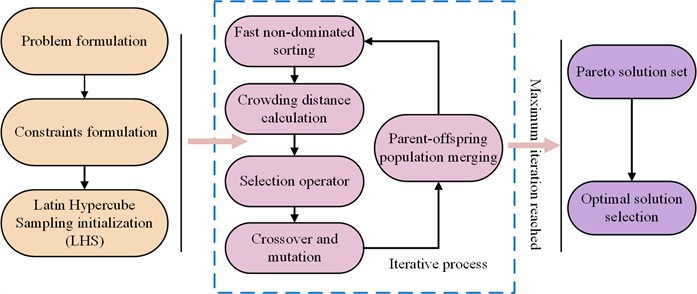

Fig. 8NSGA-II algorithm flowchart

To ensure numerical rigor and reproducibility, all stochastic operations were controlled using a fixed random seed (seed = 42). The initial population was generated via Latin Hypercube Sampling (LHS) to guarantee uniform exploration of the four-dimensional design space $\left(R,r,h,\beta \right)$. All objective functions were evaluated directly using the closed-form analytical models derived in Section 2. Crucially, no surrogate or response surface approximations were introduced, thereby retaining the full physical fidelity of the model throughout the optimization process.

A population size of 1000 individuals evolved over 100 generations was adopted, culminating in 100,000 function evaluations. Simulated Binary Crossover (SBX) and polynomial mutation were implemented with probabilities of 0.9 and 0.1, respectively. Constraint handling was executed through feasibility-based selection during fitness evaluation, and algorithmic convergence was quantitatively verified by the stabilization of the Pareto front across successive generations. The detailed hyperparameter configuration for the NSGA-II is summarized in Table 2.

5.2. Optimization results

The Pareto-optimal front obtained via NSGA-II is presented in Fig. 9. The smooth and continuous topology of the front clearly elucidates the intrinsic trade-off between excitation capability and energy consumption, substantiating the premise that no single geometric configuration can simultaneously optimize both objectives.

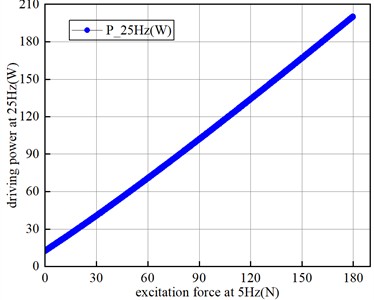

Fig. 9Pareto optimal front

The distribution of Pareto-optimal solutions within the design variable space (Fig. 10) provides direct insight into the underlying governing mechanisms. The outer radius $R$ spans nearly its entire feasible range along the Pareto front, which is fully congruent with its dominant influence on both objectives as identified by the Sobol sensitivity analysis. In contrast, the inner radius $r$ consistently converges toward its minimum allowable value; this reflects a structural imperative to maximize the effective eccentric mass while eliminating dynamically inactive material. Furthermore, the thickness $h$ also tends toward its upper bound in high-force solutions, underscoring its secondary but monotonic influence on the output.

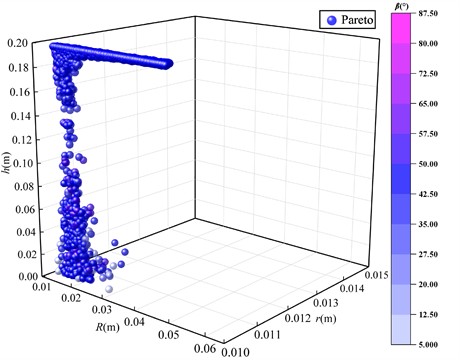

Fig. 10Distribution of Pareto optimal solutions in the design variable space

A particularly compelling observation concerns the behavior of the half-central angle $\beta$. As shown by the frequency distribution in Fig. 11, the Pareto-optimal solutions do not saturate at the parameter bounds but instead cluster predominantly around an interior value of $\beta \approx$ 48°. While eccentricity reaches its theoretical maximum at a slightly higher angle for the present geometry, further increases in $\beta$ yield only diminishing marginal gains in eccentricity. Crucially, such increases induce a nearly linear growth in total mass and rotational inertia. Given that the driving power is inertia-dominated, this results in a disproportionate power penalty. Consequently, the optimization algorithm identifies an interior value of $\beta$ that maximizes excitation efficiency rather than eccentricity alone.

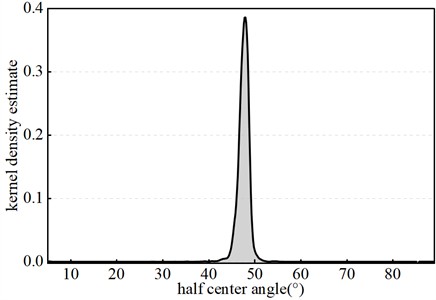

Fig. 11Frequency distribution of the half-central angle (β) among Pareto-optimal solutions

Collectively, these distribution patterns demonstrate that the Pareto front emerges from complex nonlinear interactions among geometric parameters, rather than a mere combination of parameter extremes. The proposed multi-objective framework effectively leverages these interactions to identify physically meaningful and practically realizable designs that optimally balance excitation performance and energy efficiency.

5.3. Analysis of representative optimal solutions

To further elucidate the design trade-offs along the Pareto front, three representative configurations were selected for detailed comparison: (A) Maximum Excitation Force, (B) Balanced Compromise, and (C) Minimum Driving Power. The geometric parameters and corresponding performance metrics for these cases are summarized in Table 3, with a comparative performance visualization provided in Fig. 12.

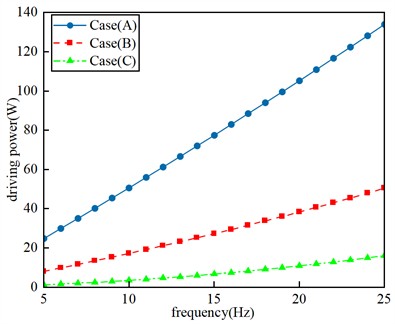

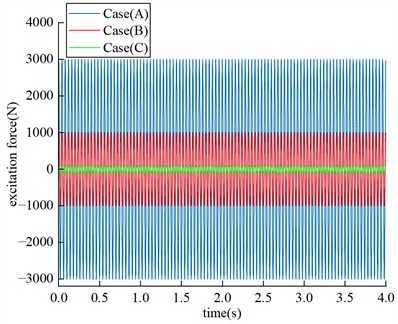

Fig. 12Performance comparison of the representative Pareto-optimal configurations

a) Total excitation force at 25 Hz

b) Driving power at 25 Hz

This compromise configuration represents the most practically viable and economically efficient design for standard exploration scenarios. Its selection underscores the effectiveness of the proposed optimization framework and reaffirms the physical consistency of the underlying analytical models. By reconciling the inherent conflict between excitation intensity and power demand, this design offers a robust technical foundation for the next generation of high-precision seismic exciters.

6.1. Validation of inertial properties and wide-band driving power performance

The key structural parameters and calculated inertial properties for the conventional, optimized, and equivalent cylindrical configurations are summarized in Table 4.

The structural comparison highlights a significant breakthrough achieved through the optimization process. The optimized design reduces the eccentric mass by 35.26 % (from 1.73 kg to 1.12 kg) and, even more remarkably, achieves a 56.36 % reduction in the total moment of inertia (from 5.5×10^-4 to 2.4×10^-4 kg·m²). This pronounced decoupling between mass and rotational inertia confirms that the NSGA-II framework effectively leverages geometric degrees of freedom – specifically by minimizing the inner radius and redistributing material toward dynamically efficient regions – to attain superior inertial performance.

The comparison of simulated driving power over the entire operational bandwidth is presented in Fig. 13.

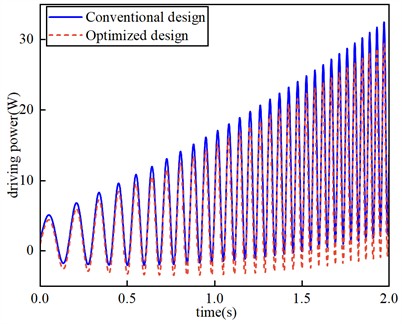

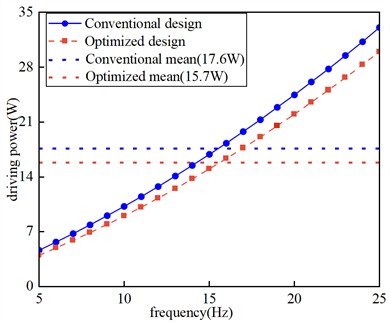

Fig. 13Comparative simulation results of the conventional and optimized designs

a) Simulated waveforms

b) Maximum driving power versus frequency

The results unambiguously demonstrate that the optimized configuration consistently outperforms the conventional design, requiring lower driving power across the entire frequency range. At the maximum frequency of 25 Hz, the conventional design consumes 33.07 W, whereas the optimized design requires only 29.98 W. When integrated over the full frequency spectrum, the optimized design achieves an average 10.52 % reduction in peak driving power. This indicates that the performance enhancement is not merely confined to discrete operating points but is inherently robust across the bandwidth. Notably, this substantial reduction in power demand is achieved without compromising the excitation force output, thereby vindicating the optimized geometry as a superior solution for balancing excitation capability with energy efficiency.

6.2. Robustness and tolerance analysis

To assess the sensitivity of the optimized geometric design to machining uncertainties, a stochastic analysis using Monte Carlo simulation with 10,000 random samples was performed. The linear dimensions $\left(R,r,h\right)$ were perturbed within ± 0.2 mm, and the half-central angle $\beta$ within ±0.5°, representing stringent yet typical CNC manufacturing tolerances.

Fig. 14 presents the kernel density estimation (KDE) for the total excitation force at 5 Hz and the driving power at 25 Hz. Both distributions are conspicuously narrow and unimodal, indicating the superior robustness of the optimized design against aleatory manufacturing deviations.

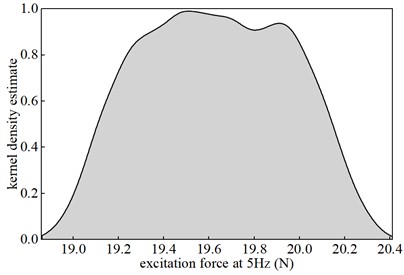

Fig. 14Robustness analysis of the optimized eccentric block under manufacturing tolerances

a) Kernel density estimate of the total excitation force at 5 Hz

b) Kernel density estimate of the driving power at 25 Hz

Quantitatively, the total excitation force exhibits a coefficient of variation below 1 %, while the driving power shows a variation of less than 0.6 %. These results conclusively demonstrate that the optimized configuration maintains consistent dynamic performance even under realistic manufacturing variances. This vindicates the Pareto-optimal solution as being not only mathematically superior but also practically resilient and reliable for industrial production.

6.3. Finite element verification of structural feasibility

To validate the structural reliability of the optimized parameters identified in Section 6.1, a high-fidelity finite element analysis (FEA) was performed. Fig. 15 illustrates the von Mises equivalent stress and total deformation of the optimized annular-sector eccentric block under peak operational loads.

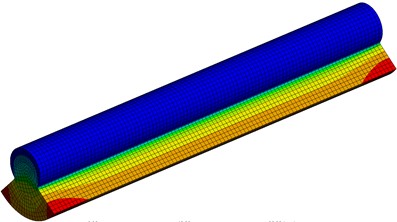

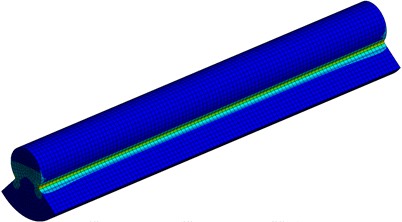

Fig. 15Finite element results of the optimized eccentric exciter under the maximum rotational speed

a) Von Mises stress distribution of the optimized eccentric exciter at $\omega =$ 157 rad/s

b) Total deformation distribution of the optimized eccentric exciter at $\omega =$ 157 rad/s

As depicted in Fig. 15(a), the maximum von Mises stress is approximately 0.41 MPa. This value is several orders of magnitude below the yield strength of conventional structural steels, providing an extensive safety margin. The uniform stress gradient confirms that the optimized geometry effectively mitigates potential stress concentration during high-speed rotation. Correspondingly, the total deformation is numerically negligible, with a peak value of only 7.15×10^-6 m (Fig. 15(b)). This combination of exceptional structural rigidity and minimal mechanical compliance ensures the dynamic stability of the centrifugal excitation force. These results conclusively verify that the optimized design fully satisfies the stringent structural reliability requirements necessitated by high-frequency seismic excitation applications.
