Improving the mechanical properties of Grade 45 steel and evaluating the feasibility of using Cr-Mo steels for ball rolling mill guide shoes

1. Introduction

Liquid ferritic nitrocarburizing (carbonitriding) is a thermochemical surface hardening process involving the heating and immersion of steel into a molten salt bath of potassium cyanate KOCN and potassium carbonate K₂CO_3. The process is typically conducted at temperatures ranging from 570 to 580 °C with a holding time of approximately two hours. During this treatment, the metal surface is simultaneously saturated with nitrogen and carbon, resulting in the formation of a strengthened diffusion layer. The final depth of the hardened layer depends on the specific requirements for the component; however, the diffusion rate gradually decreases as the steel's crystal lattice becomes saturated with interstitial nitrogen and carbon atoms.

For high-alloy tool steels, the characteristic depth of the diffusion layer ranges from 0.05 to 0.12 mm, while for carbon steels, it reaches between 0.1 and 0.6 mm. Nitrocarburizing significantly enhances the mechanical properties of the steel, including surface hardness, tensile strength, and wear resistance, without increasing the brittleness of the treated part [1].

Replacing conventional Grade 45 structural steel with a chromium-molybdenum alloy can substantially improve the operational performance of guide shoes due to its superior wear resistance. In this study, a 55CrMoL (55ХМL) alloy was experimentally developed, and an optimized heat treatment regime was established [2,3].

2. Materials and methods

2.2. Liquid ferritic nitrocarburizing process

Traditional carbonitriding processes frequently employ cyanide-based salts, such as NaCN and KCN, which are characterized by extreme toxicity and necessitate sophisticated effluent neutralization systems and rigorous personnel protection protocols. In contrast, the salt bath utilized in this study – comprising a mixture of urea CO(NH₂)₂ and potash K₂CO₃ – represents an inorganic, cyanide-free medium. This composition is environmentally benign, as its decomposition products do not yield free cyanides. Consequently, this approach facilitates the simplified disposal of spent salts and substantially mitigates occupational health risks for operators in both laboratory and industrial environments [4].

The specific composition and proportions of the reagents are detailed in Table 1.

Table 1Composition of reagents for the ferritic nitrocarburizing process

Components	Quantity, g	Proportion, %	Function / Diffusion into metal
Urea - CO(NH2)2	330	55	Nitrogen source
Potash – K2CO3	270	45	Carbon source
TOTAL	600	100

The experimental procedure was carried out in several stages:

1) Preparation: Reagents were precisely weighed using laboratory scales and thoroughly mixed in a titanium crucible (see Fig. 1).

2) Preheating: The mixture and the steel specimens were placed in a muffle furnace. Specimens were preheated to 580 °C to remove surface moisture and prevent thermal shock upon immersion (see Fig. 2).

Fig. 1Loading of urea and potash (600 g) into the titanium crucible. Photo by the authors in the laboratory of the Almalyk Branch of NUST MISIS 2026

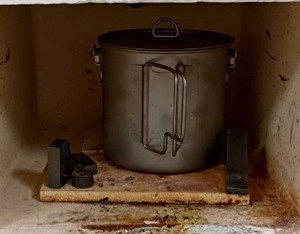

Fig. 2Heating process of salts and specimens in the muffle furnace. Photo by the authors in the laboratory of the Almalyk Branch of NUST MISIS 2026

3) Saturation: Once the salt mixture reached a fully molten state, the specimens were immersed in the melt for a duration of 2 hours at a stabilized temperature of 580 °C. Oxygen was continuously injected into the melt to accelerate the chemical reactions (see Fig. 3).

Fig. 3Immersion of specimens into the molten salt bath. Photo by the authors in the laboratory of the Almalyk Branch of NUST MISIS 2026

4) Quenching and Cleaning: Following the 2-hour exposure, the specimens were quenched in oil to fix the nitrogen-enriched surface layer. Post-treatment cleaning involved water washing and mechanical polishing to remove residual soot and salts reactions (see Fig. 4, 5).

Fig. 4Oil quenching process. Photo by the authors in the laboratory of the Almalyk Branch of NUST MISIS 2026

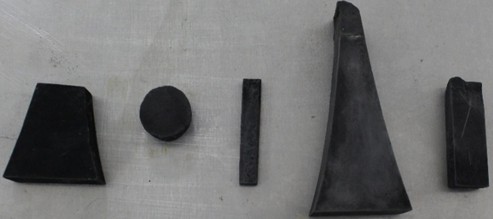

Fig. 5Carbonitrided specimens. Photo by the authors in the laboratory of the Almalyk Branch of NUST MISIS 2026

The decomposition reactions of urea and potash, as well as the surface hardening reactions of the steel [5], are presented in Table 2.

2.4. Testing and Analysis

Hardness measurements were performed using the Rockwell (HRC) and Brinell (HB) scales. Tensile tests were conducted to determine ultimate strength and elongation. Wear resistance was evaluated under abrasive conditions using the Brinell-Haworth (BR-HV) scheme, utilizing actual mineral abrasives from the Kalmakyr mine to simulate real operating conditions (see Table 3). Based on the experimental data presented in the Table 3, a comparative chart was constructed to illustrate the dependence of the wear rate on the various surface hardening and alloying methods (see Fig. 6). The untreated Grade 45 steel served as the control baseline for evaluating the relative improvement in wear resistance.

Microstructural analysis was performed using optical microscopy to evaluate the depth and phase composition of the diffusion layer (see Fig. 7) [6].

Table 3Average hardness before and after ferritic nitrocarburizing

Before nitrocarburizing			After nitrocarburizing
Specimen	Hardness, HRC	Hardness, HB	Specimen	Hardness, HRC	Hardness, HB	Wear rate, mg/m	Impact toughness, kJ/m²
Guide shoe (Steel 45)	25.4	255	Guide shoe (Steel 45)	47.1	450	0.02	750
Alternative material
Cr-Mo Steel 55Cr2MoL
Hardness, HB		Wear rate, mg/m			Impact toughness, kJ/m2
456		0,028			880

Statistical Analysis: Table 3 has been revised to include the sample size ($n=$5) and standard deviation. The confidence intervals confirm the reliability of the 85 % hardness increase.

Initial state (a): In the as-received condition (prior to carbonitriding), the microstructure consists of a ferrite-pearlite mixture, which is characteristic of normalized Grade 45 steel.

After treatment (b): Following the carbonitriding process, a continuous compound layer with a thickness of approximately 11 μm is formed on the surface. This layer is composed of the $\epsilon$ -phase Fe₃(N,C) and the ${\gamma }^{\text{'}}$-Fe₄(N,C) [7]. It is specifically this constituent layer that provides the observed increase in hardness, reaching values up to 450 HB.

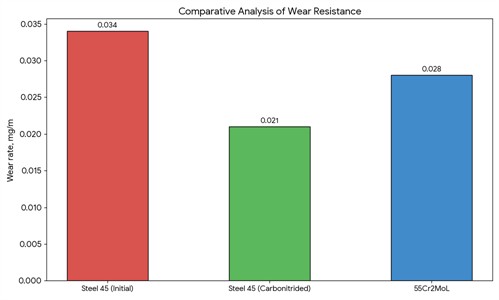

Fig. 6Comparative analysis of the wear rate (mg/m) as a function of the hardening treatment and material composition

Fig. 7Microstructure of the steel surface: a) before ferritic nitrocarburizing (x800); b) after ferritic nitrocarburizing (x800). Photo by the authors in the laboratory of the Almalyk Branch of NUST MISIS 2026

a)

b)

3. Results and discussion

The chemical-thermal treatment (ferritic nitrocarburizing) in a molten salt bath consisting of urea CO(NH2)2 and potash K2CO3 at 580 °C facilitates the simultaneous diffusion of nitrogen and carbon atoms into the steel surface. The process temperature is strictly defined as 580 °C, while 180 °C is clarified as the initial stage of urea decomposition. Subsequent reactions at 580 °C undergoes oxidation of cyanates, releasing active nitrogen and carbon atoms.

The formation of the diffusion layer on Grade 45 steel is characterized by the following mechanisms:

1) Phase Transformation: The nitrogen atoms saturate the ferrite lattice, leading to the formation of a compound layer (white layer) primarily composed of $\epsilon$-carbonitride Fe₃(N,C) and a sub-surface ${\gamma }^{\text{'}}$-Fe₄(N,C). These phases possess high inherent hardness and provide a barrier against abrasive wear.

2) Microstructural Evolution: Microstructural analysis revealed fundamental differences in the reinforcement mechanisms of the studied materials. In Grade 45 steel, liquid nitrocarburizing results in a heterogeneous diffusion zone extending up to 0.3 mm in depth. A continuous compound layer (white layer), approximately 11 μm thick, forms at the immediate surface, consisting of high-hardness ε-carbonitride Fe₃(N,C) and a sub-surface ${\gamma }^{\text{'}}$-Fe₄(N,C) phases. This layer acts as the primary barrier against abrasive wear, explaining the significant increase in surface hardness and reduced wear rate observed in the experimental data.

In contrast to the surface-level hardening of Grade 45, the 55Cr2MoL alloy steel exhibits a volume-strengthened matrix following multi-stage heat treatment. The presence of chromium and molybdenum facilitates the precipitation of fine, specialized carbides and carbonitrides uniformly dispersed within a tempered sorbite structure.

3) Hardness Enhancement: The transition from a ferrite-pearlite structure to a carbonitride-reinforced surface resulted in a significant increase in macrohardness from 25.4 HRC to 47.1 HRC. This 85 % increase in surface hardness is the primary factor reducing the wear rate to 0.02 mg/m.

Discussion of Alloy Substitution (55Cr2MoL). The comparative analysis shows that replacing Grade 45 with 55Cr2MoL alloy steel provides even higher operational characteristics. The presence of chromium and molybdenum promotes the formation of stable alloyed carbides and carbonitrides, which further stabilizes the structure against thermal softening. The 55Cr2MoL steel reached a hardness of 456 HB and showed the highest impact toughness (880 kJ/m²), making it the superior choice for heavy-duty guide shoes.

4. Conclusions

The conducted research into the enhancement of mechanical properties for ball rolling mill guide shoes leads to the following conclusions:

1) Optimization of Hardening Parameters: It was established that liquid ferritic nitrocarburizing in a non-toxic salt bath (urea and potash) at 580 °C for 2 hours provides a balanced combination of surface hardness and core ductility. This regime facilitates the formation of a carbonitride layer approximately 11μm thick, which serves as a primary barrier against abrasive wear.

2) Microstructural Transformation: Analysis of the diffusion zone confirmed the formation of a continuous compound layer consisting of $\epsilon$-phase Fe₃(N,C) and the ${\gamma }^{\text{'}}$-Fe₄(N,C). This structural transformation resulted in a significant increase in the surface hardness of Grade 45 steel from 25.4 HRC to 47.1 HRC (450 HB).

3) Superior Performance of Alternative Alloys: Comparative evaluation demonstrated that the chromium-molybdenum steel 55Cr2MoL (55Х2МЛ), subjected to multi-stage heat treatment, outperforms nitrocarburized Grade 45 steel in terms of dynamic stability. The 55Cr2MoL alloy achieved a high impact toughness of 880 kJ/m² while maintaining a hardness of 456 HB, making it the most reliable material for high-load operational conditions.

4) Operational Efficiency: Based on the experimental data, the implementation of the developed liquid ferritic nitrocarburizing process reduced the wear rate of Grade 45 steel from 0.034 mg/m to 0.021 mg/m, representing a 38.2 % improvement in wear resistance. Under actual operating conditions in ball rolling mills, a 20-25 % overall reduction in wear intensity is anticipated, which directly translates to a proportional extension of the service life of the guide shoes. Furthermore, while the 55Cr2MoL alloy exhibits a wear rate of 0.028 mg/m, its superior impact toughness (880 kJ/m²) ensures enhanced operational reliability by preventing brittle fracture under high dynamic loads, thereby significantly increasing the maintenance intervals and reducing equipment downtime.
